Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com
To get a smooth finish in hard plastics like acrylic with your CNC router, use a low helix spiral end mill. The modified cutter angle produces a better finish in plastics than standard spiral bits. Downcut bits pull chips downward, producing a clean top edge in your parts. Consequently, the chips accumulate in the cut path and should be removed to prevent bit breakage. Low helix bits require slower feed speeds than normal "high helix" bits.
Bit Specs
Material:
Solid Carbide 55 HRC
Number of Bits:
1
End Mill Type:
Low Helix Upcut
Cut Direction:
Upcut Low Helix

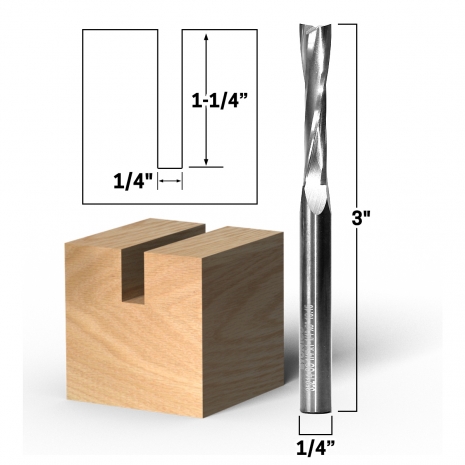

Cutting Diameter:
1/4"
Cutting Length:
1-1/4"
Overall Length:
3"
Number of Flutes:
2
General Info
Release Date:
02/17/2020
UPC:
603915011057
Product Type:
2 Flute Low Helix Upcut Spiral End Mill CNC Router Bit
Manufacturer:
Yonico
