Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

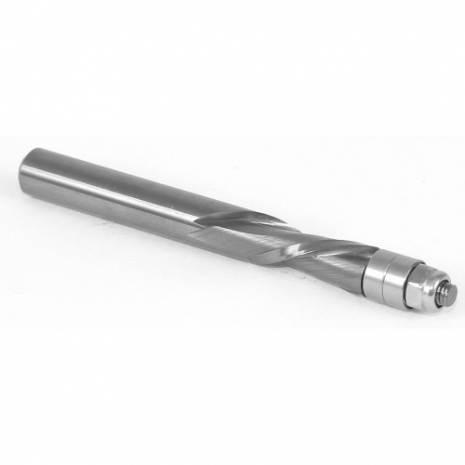

Solid carbide flush trim bits significantly outperform standard flush trim router bits and excel where standard flush trim bits are lacking producing extremely smooth finished surfaces on some of the most demanding materials and applications. The solid carbide construction allows complex blade geometry and the welded steel tip accommodates a threaded lock nut for ease of use and reliability. These bits perform well on all types of woods including, plywood, MDF, solid woods, plastic laminates and non-ferrous metals.

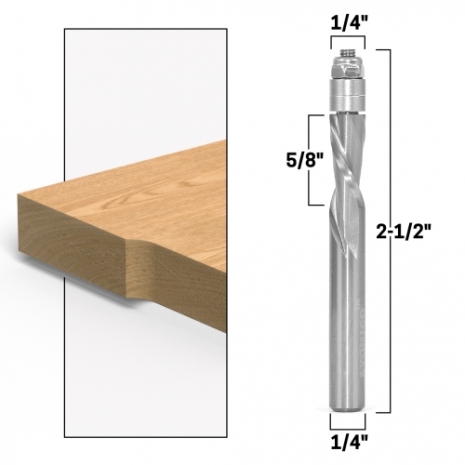

Bit Specs
Material:
Solid Carbide
Number of Bits:
1
Cut Direction:
Downcut
Cutting Diameter:
1/4"
Cutting Length:
5/8"
Overall Length:
2-1/2"
Largest Diameter:
1/4"
Number of Flutes:
2
Bearing Specs
Bearing Outer Diameter:
1/4"
General Info
Release Date:
10/23/2020
UPC:
603915011293
Design:
Straight
Product Type:
Flush Trim Solid Carbide Spiral Router Bit
Manufacturer:
Yonico
