Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

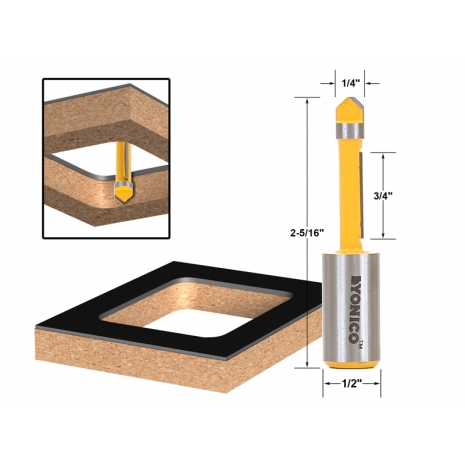

The Yonico 14174 Panel Pilot Router Bit allows you to first pierce through a veneer or laminate and then cut out the rest of the inner portion of the project such as cutting out the sink hole of a counter top. The bit's tip is steel and the blade is carbide. Saves a lot of time wasted changing out bits. Just bore a hole and trim the rest.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Diameter:
1/4"
Cutting Length:
3/4"
Overall Length:
2-5/16"
Largest Diameter:
1/4"
Number of Flutes:
1
General Info
Release Date:
02/13/2015
Condition:
New
Item #:
14174
UPC:
765573826340
Brand:
Yonico
Product Type:
Panel Pilot Trim Router Bit
Manufacturer:
Yonico
MPN:
14174
Weight:
0.11 lbs.
