Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

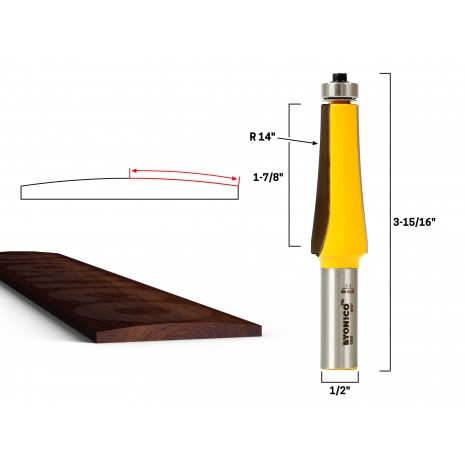

A unique way to add a radius to your stringed instrument's fretboard. These radiusing bits will eliminate the excessive effort required for using a sanding block. Tape the finger board to a perfectly squared board and slide along the router table fence with the top of the bit's blade running at the height of the center line of the finger board. This will radius one half of the board. Then flip the stock to radius the other half. Yonico fretboard radiusing router bits come in radiuses of 7-1/4", 8-1/2", 9-1/2", 10", 12" & 16".
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
2"
Cutting Depth:
1/8"
Overall Length:
3-15/16"
Largest Diameter:
3/4"
Radius:
14"
Number of Flutes:
2
General Info
Release Date:
07/12/2018
UPC:
765573834055
Design:
Large Radius
Product Type:
Guitar Finger Board Radiusing Router Bit
Application:
Lutherie
Manufacturer:
Yonico
