Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com
O flute spiral router bits are designed to produce clean cuts in acrylic, HDPE, UHMW and other plastics. The spiral downcut geometry shears in a downward direction leaving a smooth top surface finish. O flute bits have a larger cullet than standard spiral bits which allow for larger chips. This alleviates overheating which can cause the material to melt and create rough or deformed cuts.

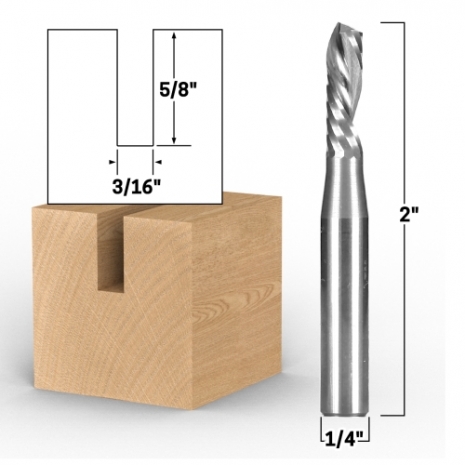

Bit Specs
Material:
Solid Carbide
Number of Bits:
1
End Mill Type:
Downcut O Flute
Cut Direction:
Downcut
Cutting Diameter:
3/16"
Cutting Length:
5/8"
Overall Length:
2"
Largest Diameter:
1/4"
Number of Flutes:
1
General Info
Release Date:
10/25/2023
UPC:
603915025634
Design:
Straight
Product Type:
O Flute Downcut Spiral End Mill CNC Router Bit
Manufacturer:
Yonico
