Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com
When working with any veneer finished material in your CNC machine, you need a compression spiral end mill to make full depth cut. These bits are designed to leave clean edges on the top and bottom faces of any material. The compression bit's unique design pulls chips upward at the bottom of the stock and downward at the top face, producing chip-free surfaces that are perfect for cabinet and furniture parts. Compression cut spiral end mills are excellent for melamine, plywood, MDF and solid wood. With the added DLC coating, these bits last up to 2.5 times longer than standard uncoated bits.

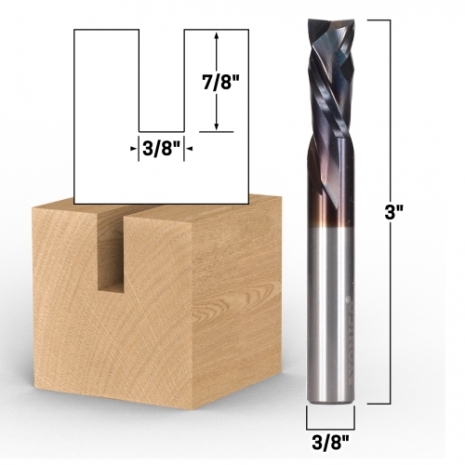

Bit Specs
Coating:
DLC (Diamond Like Coating)
Material:
Solid Carbide
Number of Bits:
1
End Mill Type:
Compression
Cut Direction:
Compression
Cutting Diameter:
3/8"
Cutting Length:
7/8"
Overall Length:
3"
Number of Flutes:
2
General Info
Release Date:
01/10/2024
UPC:
603915026778
Product Type:
Compression Spiral End Mill DLC Coating CNC Router Bit
Manufacturer:
Yonico
