Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

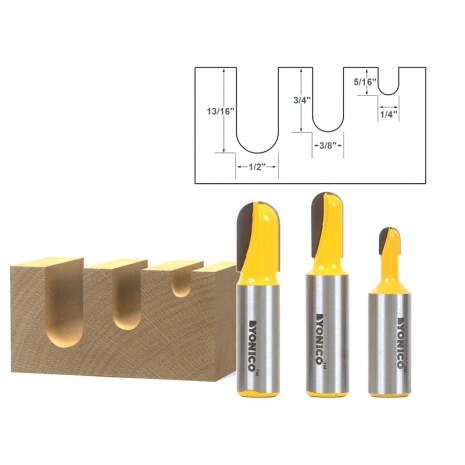

CORE BOX ROUTER BITS SET:
- Diameter: 1/2", Radius: 1/4", Cutter Height: 13/16", Overall Height: 2-1/4"
- Diameter: 3/8", Radius: 3/16", Cutter Height: 3/4", Overall Height: 2-5/16"
- Diameter: 1/4", Radius: 1/8", Cutter Height: 5/16" Overall Height: 1-15/16"
Bit Specs
Material:
Carbide Tipped
Number of Bits:
3
Cutting Diameter:
Multi
Cutting Length:
Multi
Number of Flutes:
2
General Info
Release Date:
12/26/2012
Condition:
New
Item #:
14360
UPC:
765573826500
Brand:
Yonico
Design:
Core Box
Product Type:
Core Box Router Bit Set
Manufacturer:
Yonico
MPN:
14360
Weight:
0.33 lbs.
