Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

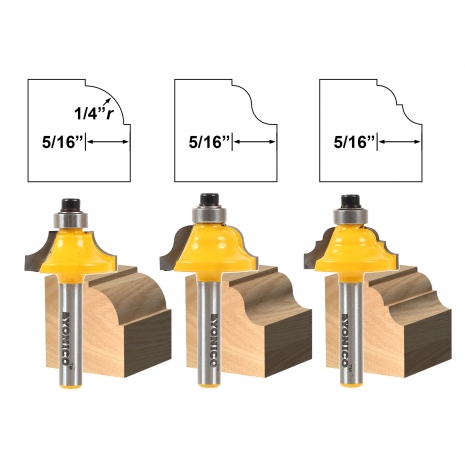

The Yonico 13320q includes the following 3 small profiles: Round over Bead, Roman Ogee and Double Roman Ogee.
Dimensions are as follows:
- 1/4"r Round over Bead - 1" Diameter, 29/64" Cutter Height, 2" Overall Height, 5/16" Cutter Depth
- Roman Ogee - 1" Diameter, 7/16" Cutter Height, 2" Overall Height, 5/16" Cutter Depth
- Double Roman Ogee - 1" Diameter, 15/32" Cutter Height, 2" Overall Height, 5/16" Cutter Depth
Two flute carbide cutters and 1/4" shanks.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
3
Number of Flutes:
2
Bearing Specs
Bearing Outer Diameter:
23/64"
General Info
Release Date:
12/28/2016
UPC:
765573833430
Design:
Assorted
Product Type:
3 Bit Edge Forming Router Bit Set
Manufacturer:
Yonico
