Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

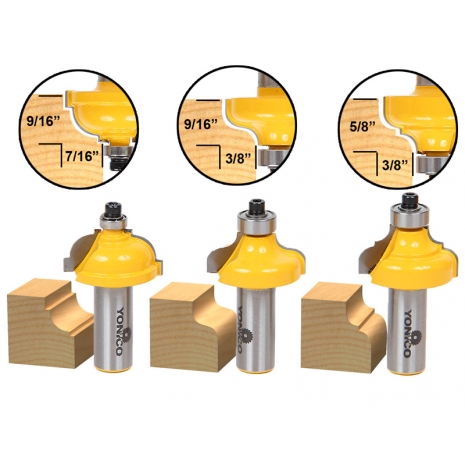

The Yonico 13327 includes 3 medium edging router bits in the following profiles: Cove with Bead,Traditional Ogee and Classical Traditional Ogee.
Dimensions are as follows:
- Cove with Bead - 1-1/4" Diameter, 5/8" Cutter Height, 7/16" Cutter Depth, 9mm Bearing
- Traditional Ogee - 1-1/4" Diameter, 9/16" Cutter Height, 3/8" Cutter Depth, 1/2" Bearing
- Classical Traditional Ogee - 1-1/4" Diameter, 11/16" Cutter Height, 3/8" Cutter Depth, 1/2" Bearing
Two flute carbide cutters and 1/2" shanks.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
3
Number of Flutes:
2
General Info
Release Date:
12/26/2012
Condition:
New
Item #:
13327
UPC:
765573825817
Brand:
Yonico
Design:
Assorted
Product Type:
3 Bit Edge Forming Router Bit Set
Manufacturer:
Yonico
MPN:
13327
Weight:
0.58 lbs.
