Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

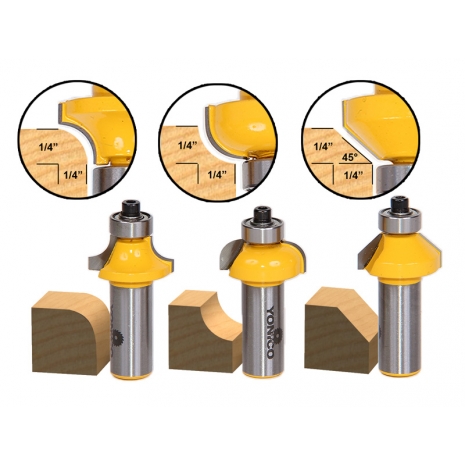

The Yonico 13310 edging router bit set includes 3 small edging bits in the following 3 popular designs ; Roundover, Cove and Chamfer.
Router Bit Dimensions are as follows:
- 1/4"r Roundover - 1/4" Cutter Depth, 1" Diameter, 15/32" Cutter Height
- 1/4"r Cove - 1/4" Cutter Depth, 1" Diameter, 3/8" Cutter Height
- 45° Chamfer - 1/4", 1/4" Cutter Depth, 1" Diameter, 7/16" Cutter Height
Two flute carbide cutters and 1/2" shanks.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
3
Number of Flutes:
2
Bearing Specs
Bearing Inner Diameter:
3/16"
Bearing Outer Diameter:
1/2"
Bearing Height:
3/16"
General Info
Release Date:
12/26/2012
Condition:
New
Item #:
13310
UPC:
765573825749
Brand:
Yonico
Design:
Assorted
Product Type:
3 Bit Edge Forming Router Bit Set
Manufacturer:
Yonico
MPN:
13310
Weight:
0.44 lbs.
