Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

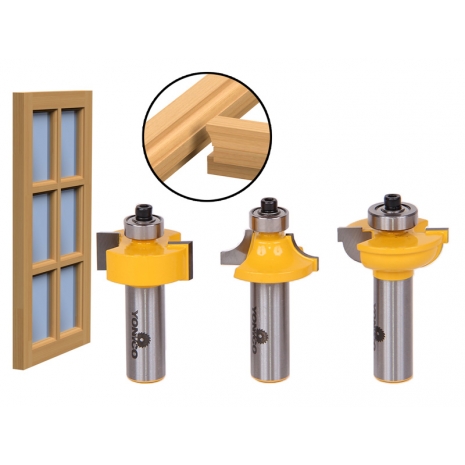

Route beautiful glass doors with the 3 bit Yonico 12319 Glass Door Router Bit Set.
Router bit sizes are as follows:
- Profile Bit - 1-1/4" Diameter, 1/2" Cutter Height, 2-3/8" Overall Height, 7/16" Cutter Depth, 1/2" Bearing
- Coping Bit - 1-3/8" Diameter, 1/2" Cutter Height, 2-3/8" Overall Height, 3/8" Cutter Depth, 5/8" Bearing
- Rabbet Bit - 1-1/4" Diameter, 1/2" Cutter Height, 2-1/4" Overall Height, 3/8" Cutter Depth, 1/2" Bearing
- Carbide tipped 2 flute cutters with ball bearing guides.

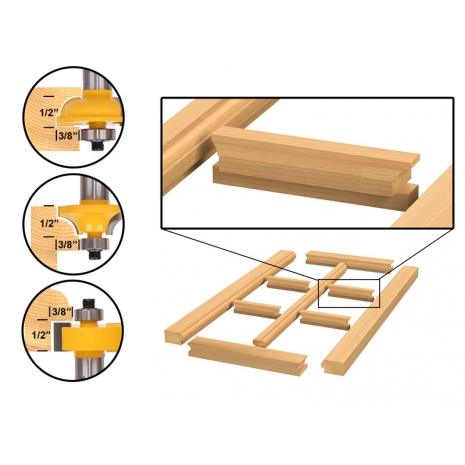

- Use the beading profile bit to cut rails and stiles and the coping bit to cope rail ends. The rabbeting bit will cut out the back of the frame to accommodate glass. 1/2" shank.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
3
Cutting Length:
1/2"
Cutting Depth:
3/8"
Number of Flutes:
2

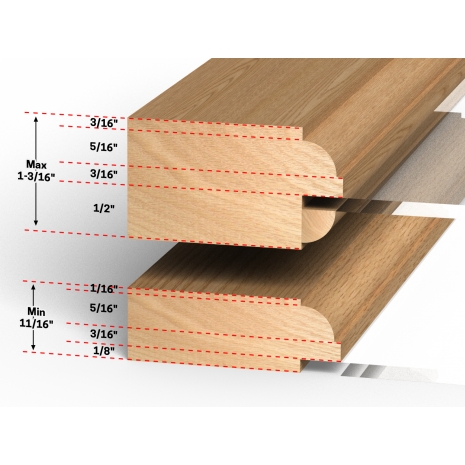

Minimum Stock Thickness:
11/16"
Maximum Stock Thickness:
1-3/16"
General Info
Release Date:
12/10/2012
Condition:
New
Item #:
12319
UPC:
765573825343
Brand:
Yonico
Design:
Round Over Bead
Product Type:
3 Bit Glass Door Router Bit Set
Manufacturer:
Yonico
MPN:
12319
Weight:
0.88 lbs.
