Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com
- Industrial Quality
- C3 Carbide Cutters
- Solid Hardened Steel Body
- Anti-Kickback Design
- Build-Up Resistant Coating
- 1/2" Shank

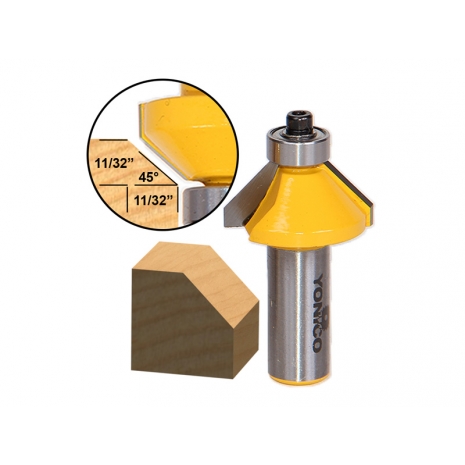

Make 45° bevel cuts with the Yonico 13105 Chamfer Router Bit. Bevel height is 11/32". Two flute carbide cutters and 1/2" Shank.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
11/32"
Cutting Depth:
11/32"
Overall Length:
2-3/16"
Largest Diameter:
1-3/16"
Degrees:
45°
Number of Flutes:
2
Bearing Specs
Bearing Inner Diameter:
3/16"
Bearing Outer Diameter:
1/2"
Bearing Height:
3/16"
General Info
Release Date:
04/10/2013
Condition:
New
Item #:
13105
UPC:
765573827774
Brand:
Yonico
Design:
Chamfer
Product Type:
Chamfer Edge Forming Router Bit
Manufacturer:
Yonico
MPN:
13105
Weight:
0.19 lbs.
