Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

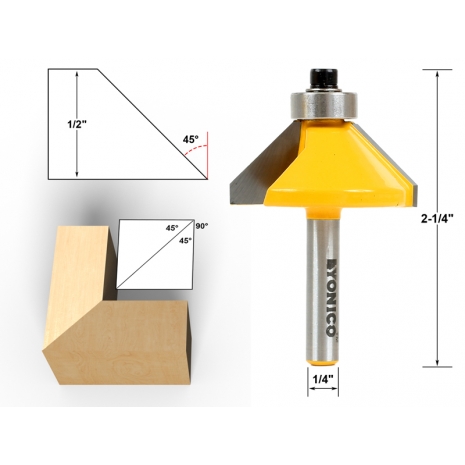

Make 45° chamfer and bevel cuts with the Yonico 13906q Chamfer Router Bit. This bit will also create a 90° angle miter joint. Can be used with stock up to 1/2" thick. Two flute carbide cutters and 1/4" Shank.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
1/2"
Cutting Depth:
1/2"
Overall Length:
2-1/4"
Largest Diameter:
1-1/2"
Degrees:
45°
Number of Flutes:
2
Bearing Specs
Bearing Inner Diameter:
3/16"
Bearing Outer Diameter:
1/2"
Bearing Height:
3/16"
General Info
Release Date:
02/23/2015
Condition:
New
Item #:
13906q
UPC:
765573828979
Brand:
Yonico
Design:
Chamfer
Product Type:
Chamfer Edge Forming Router Bit
Manufacturer:
Yonico
MPN:
13906q
Weight:
0.21 lbs.
