Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

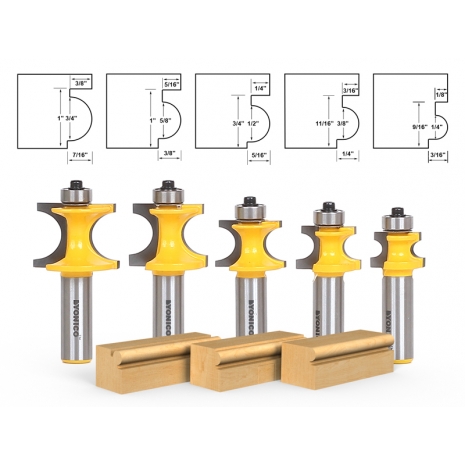

Cut bullnose edges for countless applications with the 5 bit Yonico 13516 Bullnose Beading Router Bit Set. Bullnose router bit radius sizes include: 1/8"r, 3/16"r, 1/4"r, 5/16"r, 3/8"r. Bead sizes are 1/4", 3/8", 1/2", 5/8", 3/4" respectively. With double passes, Yonico Bullnose Beading Router Bit Set can also make dowels in the following sizes: 1/4", 3/8", 1/2", 5/8" and 3/4". Two flute carbide cutters and 1/2" shanks. Yonico 13516 comes in a solid wood storage case.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
5
Cutting Length:
Multi
Cutting Depth:
Multi
Number of Flutes:
2
Bearing Specs
Bearing Inner Diameter:
3/16"
Bearing Outer Diameter:
1/2"
Bearing Height:
3/16"
General Info
Release Date:
05/02/2014
Condition:
New
Item #:
13516
UPC:
765573825930
Brand:
Yonico
Design:
Corner Bead
Product Type:
Bullnose Bead Router Bit
Manufacturer:
Yonico
MPN:
13516
Weight:
1.5 lbs.
