Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

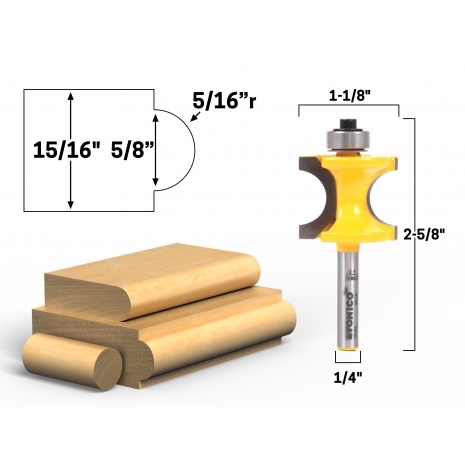

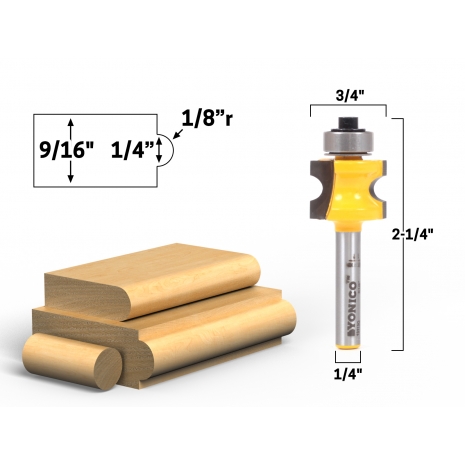

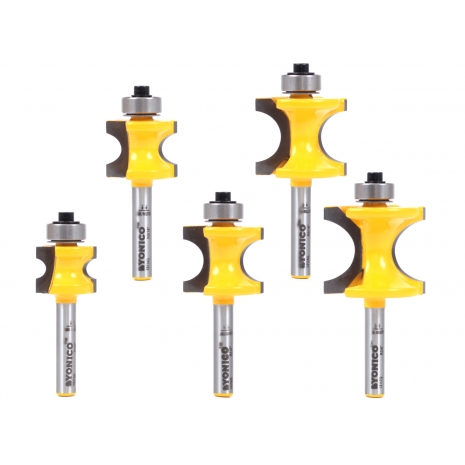

Cut bullnose edges for countless applications with the 5 bit Yonico 13515q Bullnose Router Bit Set. Bullnose router bit radius sizes include: 1/8"r, 3/16"r, 1/4"r, 5/16"r, 3/8"r. Bead sizes are 1/4", 3/8", 1/2", 5/8", 3/4" respectively. With double passes, Yonico Bullnose Router Bit Set can also make dowels in the following sizes: 1/4", 3/8", 1/2", 5/8" and 3/4". Two flute carbide cutters and 1/4" shanks. Yonico 13515q comes in a solid wood storage case.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
5
Cutting Length:
Multi
Cutting Depth:
Multi
Number of Flutes:
2
General Info
Release Date:
12/04/2017
UPC:
765573832808
Design:
Bullnose
Product Type:
Bullnose Router Bit
Manufacturer:
Yonico
