Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

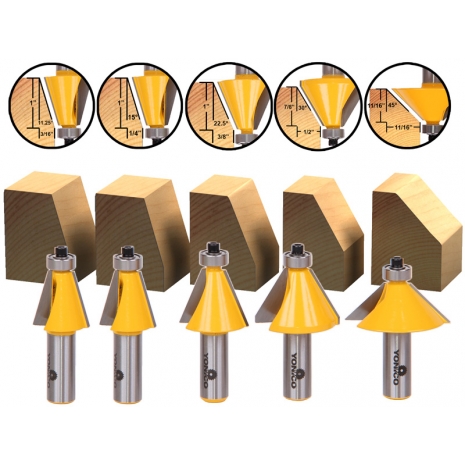

Own this practical 5 bit chamfer router bit set complete with the following 5 chamfer sizes; 11.25°, 15°, 22.5°, 30° and 45°.
Router bit dimensions are as follows:
The Yonico 13508 router bit set comes in a solid wood storage case. Two flute carbide cutters and 1/2" shanks.
Router bit dimensions are as follows:
- 11.25° Chamfer - 7/8" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 3/16" Cutter Depth
- 15° Chamfer - 1" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 1/4" Cutter Depth
- 22.5° Chamfer - 1-1/4" Diameter, 1" Cutter Height, 2-13/16" Overall Height, 3/8" Cutter Depth
- 30° Chamfer - 1-1/2" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 1/2" Cutter Depth
- 45° Chamfer - 1-7/8" Diameter, 23/32" Cutter Height, 2-1/2" Overall Height, 11/16" Cutter Depth
The Yonico 13508 router bit set comes in a solid wood storage case. Two flute carbide cutters and 1/2" shanks.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
5
Cutting Length:
Multi
Cutting Depth:
Multi
Degrees:
Multi
Number of Flutes:
2
Bearing Specs
Bearing Inner Diameter:
3/16"
Bearing Outer Diameter:
1/2"
Bearing Height:
3/16"
General Info
Release Date:
12/11/2012
Condition:
New
Item #:
13508
UPC:
765573825824
Brand:
Yonico
Design:
Chamfer
Product Type:
Bevel Edge Forming Router Bit
Manufacturer:
Yonico
MPN:
13508
Weight:
1.49 lbs.
