Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

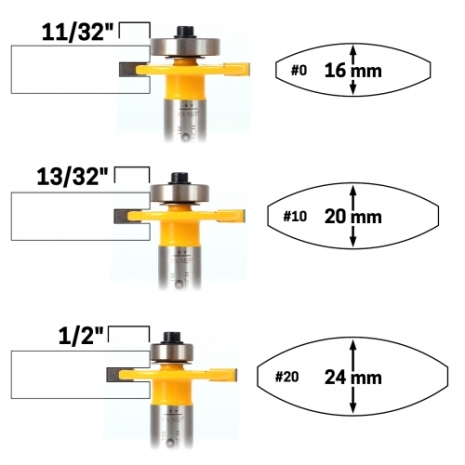

Biscuit joints provide a fast and easy way to join cabinet parts and furniture components. Simple butt joints often do not provide the necessary strength for common scenarios. Biscuit joints provide added glue surface and extra structural strength where the biscuits are inserted and glued. Even if you don't own a biscuit joiner, you can produce accurate joints with our biscuit joint slot cutting router bits. Select the desired bit based on the biscuit size you wish to use (#0, #10 or #20).

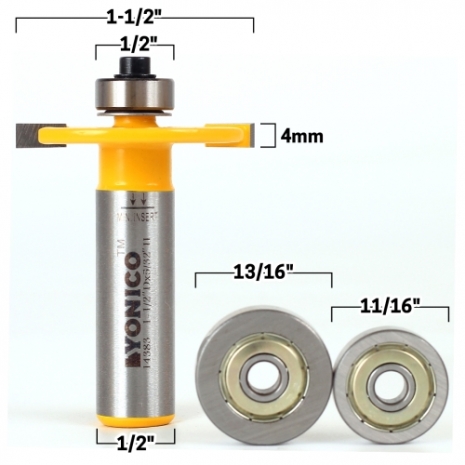

Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
5/32"
Cutting Depth:
1/2"
Overall Length:
2-5/16"
Largest Diameter:
1-1/2"
Number of Flutes:
2
General Info
Release Date:
09/26/2017
UPC:
603915018551
Design:
Slot
Product Type:
Biscuit Joint Slot Cutter Router Bit
Manufacturer:
Yonico
