Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

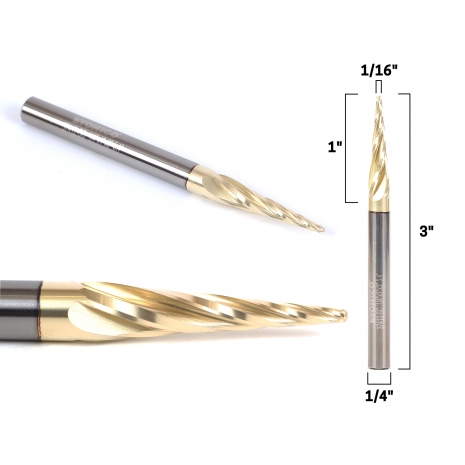

3D carving CNC end mills with ZRN coating provide the extra length needed to carve 3D shapes out of solid wood, plastic, foam and other materials. The extended bit design provides the necessary reach to create high relief projects. It is important to perform the large material removal with a standard CNC endmill and only utilize these bits for the final high-resolution pass. Any added strain on these bits can result in breakage to these delicate bits. With the added ZRN coating, the bit’s lifespan and durability are substantially increased, avoiding any unnecessary down time.
Bit Specs
Coating:
Zirconium Nitride (ZrN)
Material:
Solid Carbide
Number of Bits:
1
Taper Angle:
5.5°
End Mill Type:
Taper
Cut Direction:
Upcut
Cutting Diameter:
1/16"
Cutting Length:
1"
Overall Length:
3"
Degrees:
5.5°
Number of Flutes:
4
General Info
Release Date:
02/18/2019
UPC:
765573833416
Product Type:
Tapered Ballnose Spiral ZRN Coated CNC Router Bit
Manufacturer:
Yonico
