Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

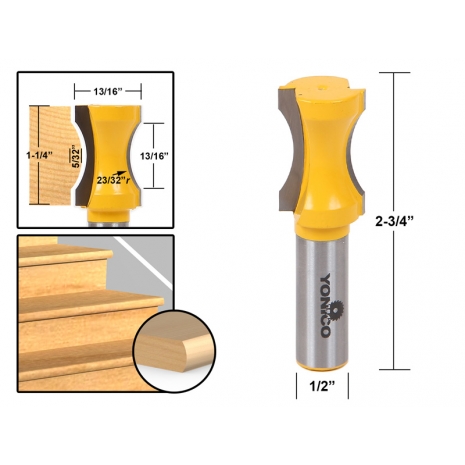

The Yonico 13102 Convex Edging Router Bit will cut a shallow arc with a 1/8" cutter depth. Compared to a bullnose router bit which cuts a deeper half circle, the convex edging router bit will make a shallower rounding effect. Two flute carbide cutters and 1/2" shank.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
1-1/4"
Cutting Depth:
1/8"
Overall Length:
2-3/4"
Largest Diameter:
13/16"
Radius:
23/32"
Number of Flutes:
2
General Info
Release Date:
12/24/2012
Condition:
New
Item #:
13102
UPC:
765573825503
Brand:
Yonico
Design:
Convex
Product Type:
Convex Edge Router Bit
Manufacturer:
Yonico
MPN:
13102
Weight:
0.21 lbs.
