Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

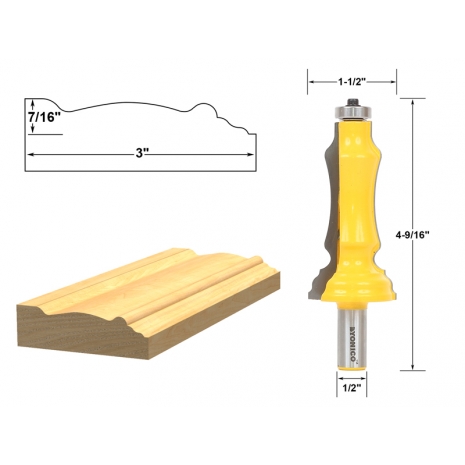

Create beautiful door and window casings using this Yonico 16124 casing router bit. Casings conceal open seams around newly installed windows and doors. Using this bit you can create casings that are at least 3 inches wide. 1/2" Shank
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
3"
Cutting Depth:
7/16"
Overall Length:
4-9/16"
Largest Diameter:
1-1/2"
Number of Flutes:
2
Minimum Stock Thickness:
3"
Bearing Specs
Bearing Outer Diameter:
5/8"
General Info
Release Date:
12/12/2013
Condition:
New
Item #:
16124
UPC:
765573828023
Brand:
Yonico
Product Type:
Casing Router Bit
Application:
Molding
Manufacturer:
Yonico
MPN:
16124
Weight:
0.58 lbs.
