Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

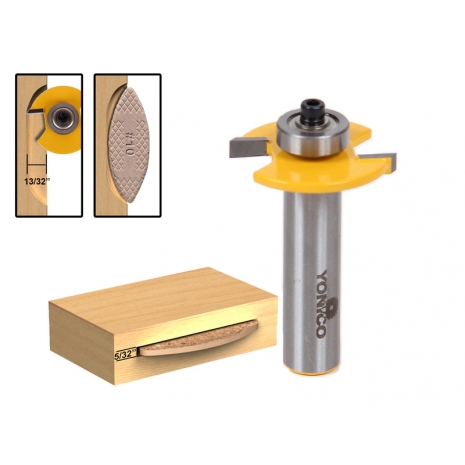

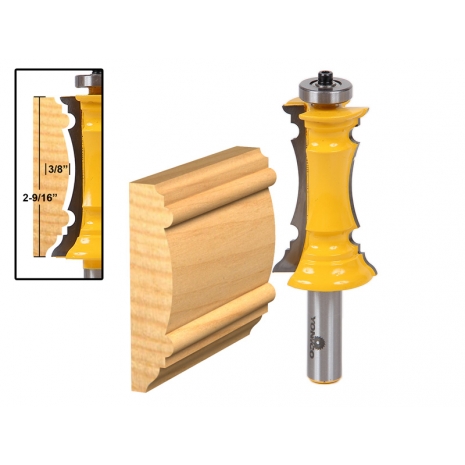

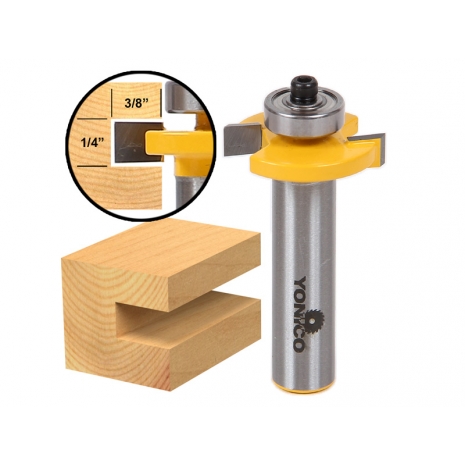

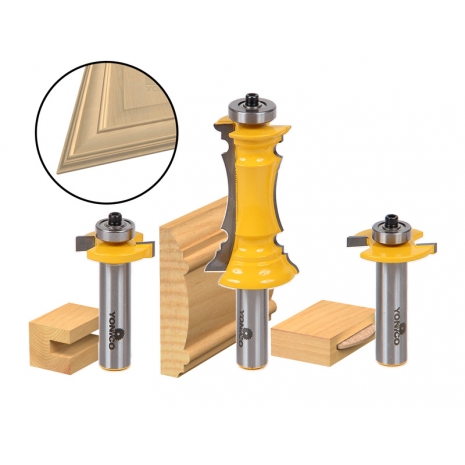

The Yonico 3 bit mitered door router bit set will make dramatic mitered doors as an alternative to rail and stile routing. The large profile router bit will create beautiful door frames as well as picture frames, mirror frames, chair rails, crown moldings and other decorative trim. For mitered door frames and picture and mirror frames the stock is mitered at 45° and glued and biscuit joined with the included large diameter, 5/32" high cutter. This method will create a sturdy and secure joint. The profile bit is designed to work with 2-13/16" wide stock and a recommended thickness of at least 3/4". Combine with any one of our Yonico raised panel router bits to create highly decorative raised panel doors. Use the included 1/4" slot cutter router bit to cut the slot for the panel. As with our other Yonico router bits, the Yonico mitered door router bit set is manufactured with industrial quality c3 micrograin carbide. Two flute carbide cutters & 1/2" shanks.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
3
Number of Flutes:
2
General Info
Release Date:
11/01/2012
Condition:
New
Item #:
12230
UPC:
765573825220
Brand:
Yonico
Product Type:
3 Bit Miter Frame Molding Router Bit Set
Manufacturer:
Yonico
MPN:
12230
Weight:
1.49 lbs.
