Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

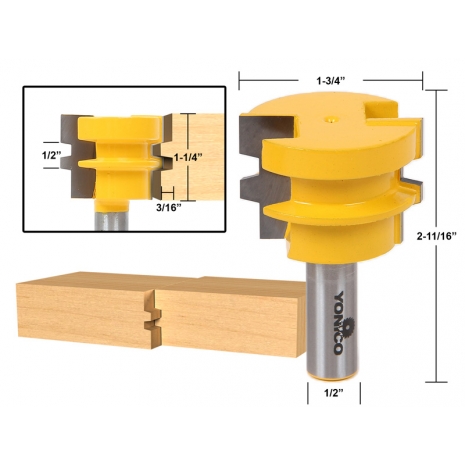

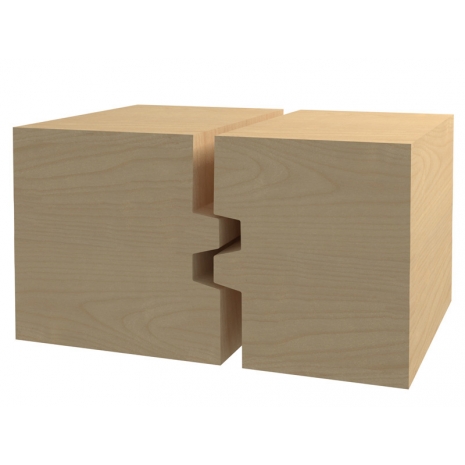

Rout perfect joining cuts with one reversible bit! Simply set the center of the bit with the center of the stock. Run one cut face up and the adjoining cut face down. Great for edge- joining tabletops, door panels and flooring among many other glue joint projects. Two flute carbide cutters and shank is 1/2".

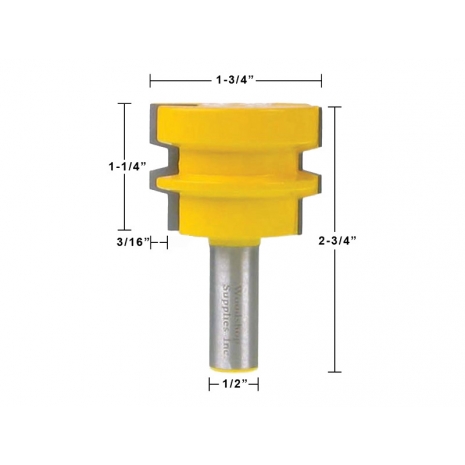

Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
1-1/4"
Cutting Depth:
3/16"
Overall Length:
2-3/4"
Largest Diameter:
1-3/4"
Number of Flutes:
2
Minimum Stock Thickness:
5/8"
Maximum Stock Thickness:
1-1/4"
General Info
Release Date:
11/01/2012
Condition:
New
Item #:
15135
UPC:
765573826852
Brand:
Yonico
Design:
Glue Joint
Product Type:
Reversible Glue Joint Router Bit
Manufacturer:
Yonico
MPN:
15135
Weight:
0.57 lbs.
