Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com
Horizontal crown router bits, also referred to as large bowl router bits, create large spherical indents in a variety of materials and can be plunged straight into the work piece. These are perfect for making large custom crown moldings, bowls, coin trays, mancala game boards and other interesting projects. These can be used on solid wood and MDF.

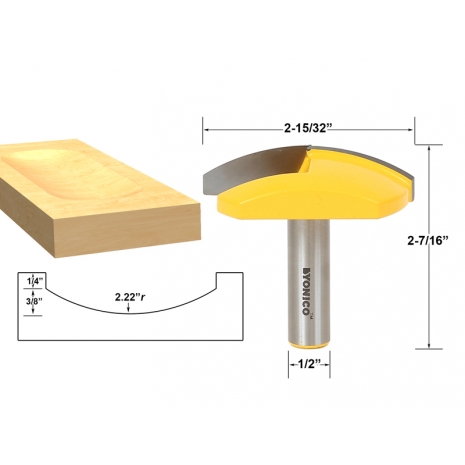

Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Diameter:
2-15/32"
Cutting Length:
5/8"
Overall Length:
2-7/16"
Largest Diameter:
2-15/32"
Radius:
2.22"
Number of Flutes:
2
General Info
Release Date:
01/29/2014
Condition:
New
Item #:
16171
UPC:
765573828627
Brand:
Yonico
Design:
Bowl
Product Type:
Horizontal Crown Router Bit
Manufacturer:
Yonico
MPN:
16171
Weight:
0.59 lbs.
