Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|

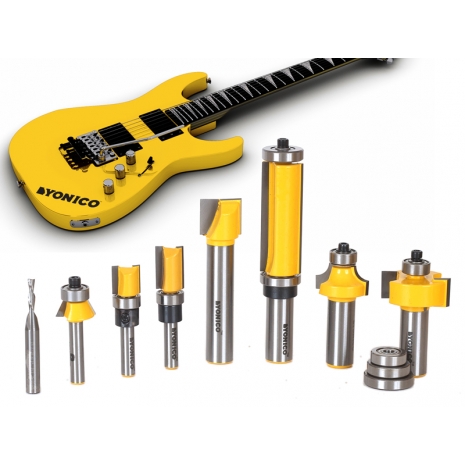

The Yonico 14801 set of Luthier router bits for electric guitar building includes all the essential router bits needed for electric guitar body making.
This set of router bits for guitar building will enable you to:
• Flush trim the guitar body
• Add a round over to the body's edge
• Rabbet the body's edge for binding
• Groove out the cavities
• Bevel the pick guard
• Cut intricate inlays
This set includes:
• 1 Top and bottom bearing flush trim router bit
Yonico 14134 - 2" Top and Bottom Bearing Flush Trim Router Bit
• 1 Round over router bit
Yonico 13162 - 1/4" Radius Round Over Router Bit
• 1 Rabbet router bit - Yonico 14187
1/2" High X 3/8" Deep Rabbeting Router Bit
• 3 Additional Bearings:
Outer Diameter - 5/8" for 5/16" Binding
Outer Diameter - 3/4" for 1/4" Binding
Outer Diameter - 7/8" for 3/16" Binding
• 1 3/4" X 3/4" Bottom cleaning router bit
Yonico 14971- 3/4" X 3/4" Bottom Cleaning Long Shank Straight Router Bit
• 2 template trim router bits
Yonico 14123q - 1/2" Wide X 3/4" High Template Trim Router Bit
Yonico 14169q - 1/2" Wide X 1/2" High Template Trim Router Bit
• 1 Bevel trim router bit
Yonico 14932q - 30° Bevel Trim Router Bit
• 1 Down cut solid carbide spiral router bit
Yonico 32210-SC - 1/8" Diameter Downcut Spiral Solid Carbide Router Bit
Please note: This set includes bits that are 1/2" shank and 1/4" shank.
