Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

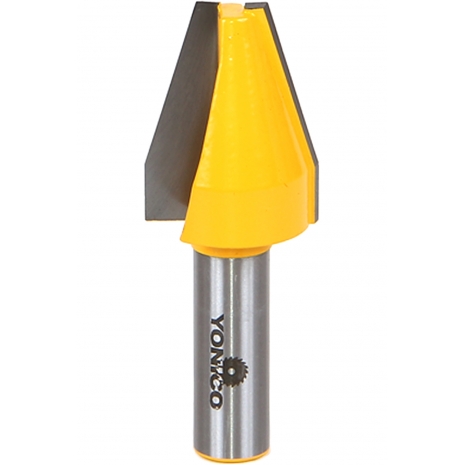

There's no need to buy a heavy-duty router to make your own doors. Because of their smaller diameter, vertical panel raising bits require less horsepower and can be run at higher speeds than their horizontal counterparts. A vertical bit takes a much smaller "bite" out of the stock so your router won't get bogged down in the middle of a cut. We offer vertical panel raising bits with 1/2" & 1/4” shanks. Choose the larger shank diameter if your router collet will accept it.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
1-1/2"
Cutting Depth:
5/16"
Overall Length:
3"
Largest Diameter:
1-1/8"
Degrees:
17°
Number of Flutes:
2
General Info
Release Date:
12/11/2012
Condition:
New
Item #:
12144
UPC:
765573825138
Brand:
Yonico
Design:
Bevel
Product Type:
Vertical Raised Panel Router Bit
Application:
Cabinet Door
Manufacturer:
Yonico
MPN:
12144
Weight:
0.29 lbs.
