Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

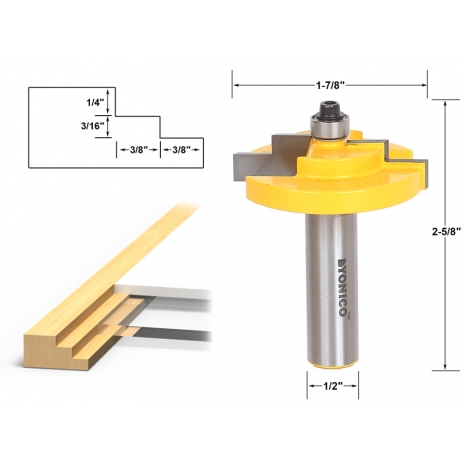

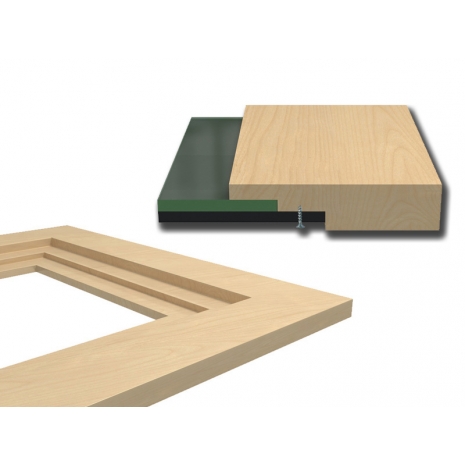

This bit will step-rabbet the back of your picture frame allowing ample space for glass, artwork and backing. The rouetr bit cuts a 3/16" thick front rabbet for your glass or mirror, and an additional 1/4" back rabbet for the artwork and backing board. Two flute carbide cutters with ball bearing guides. 1/2" Shank.

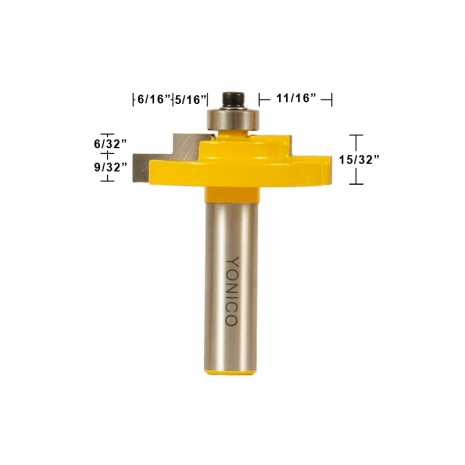

Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
7/16"
Cutting Depth:
3/4"
Overall Length:
2-5/8"
Largest Diameter:
1-7/8"
Number of Flutes:
2
General Info
Release Date:
11/01/2012
Condition:
New
Item #:
18127
UPC:
765573827453
Brand:
Yonico
Design:
Stepped Rabbet
Product Type:
Stepped Rabbet Router Bit
Manufacturer:
Yonico
MPN:
18127
Weight:
0.39 lbs.
