Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

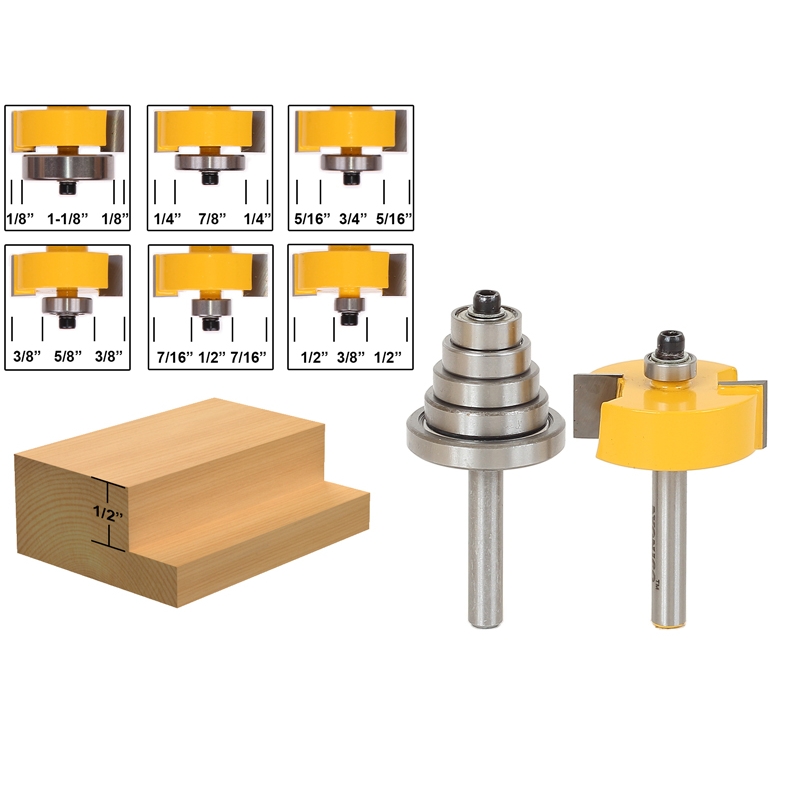

The Yonico 14705q Rabbet Router Bit Set, complete with 6 bearings, will make rabbet cuts in 6 different sizes. Can be used to cut lap joints as well. Rabbet cutting depths are as follows: 1/2", 7/16", 3/8", 5/16", 1/4" & 1/8". 6 bearing sizes include: 3/8", 1/2", 5/8", 3/4", 7/8" and 1-1/8" with inner diameters of 3/16". Two flute carbide cutters and 1/4" shank.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
1/2"
Cutting Depth:
1/8" to 1/2"
Largest Diameter:
1-3/8"
Number of Flutes:
2
General Info
Release Date:
01/01/2014
Condition:
New
Item #:
14705q
UPC:
765573828603
Brand:
Yonico
Design:
Rabbet
Product Type:
Rabbet Router Bit & Bearing Set
Manufacturer:
Yonico
MPN:
14705q
Weight:
0.61 lbs.
