Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

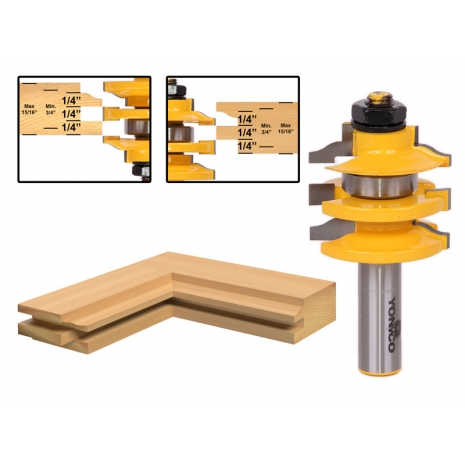

The Yonico Stacked Rail and Stile Router Bit will cut both the profile and cope for rail and stile cabinet doors with a single bit. Simply, cut the profiles with the middle and lower blades and then lower the bit in your table to make the cope cut using the middle and upper blades. No need to switch or reassemble cutters. This bit comes equipped with a radial ball bearing for easy cutting depth setup.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Depth:
3/8"
Overall Length:
3-1/4"
Largest Diameter:
1-5/8"
Number of Flutes:
2
Minimum Stock Thickness:
3/4"
Maximum Stock Thickness:
15/16"
Bearing Specs
Bearing Inner Diameter:
5/16"
Bearing Outer Diameter:
7/8"
Bearing Height:
9/32"
General Info
Release Date:
12/10/2012
Condition:
New
Item #:
12121
UPC:
765573825039
Brand:
Yonico
Design:
Ogee
Product Type:
Stacked Rail and Stile Router Bit
Application:
Cabinet Door
Manufacturer:
Yonico
MPN:
12121
Weight:
0.42 lbs.
