Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

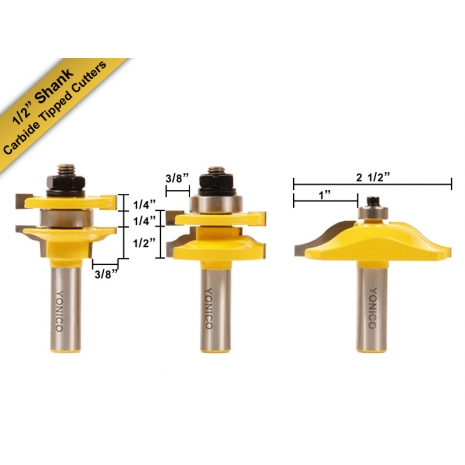

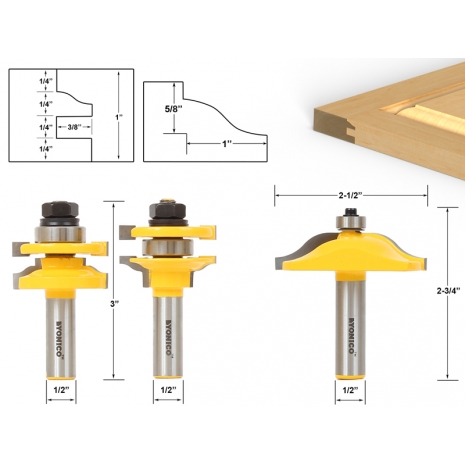

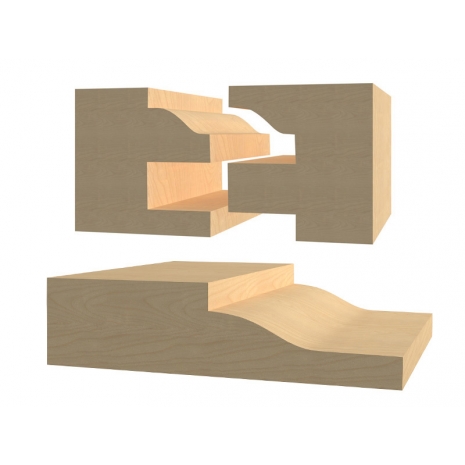

Rail and stile door construction has been around for centuries and is the most common way to build doors for cabinets and furniture. Our rail and stile router bits will enable you to create your own frame-and-panel doors. Cope the ends of your rails with one bit, and then switch to the second bit to route the inside edge profile in all your door parts. The included panel raiser cuts the artistic profile on the center panel which reduces the panel's thickness to properly fit in the door frame's groove.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
3
Number of Flutes:
2
Minimum Stock Thickness:
3/4"
Maximum Stock Thickness:
1"
General Info
Release Date:
11/01/2012
Condition:
New
Item #:
12338
UPC:
765573825398
Brand:
Yonico
Design:
Ogee
Product Type:
3 Bit Raised Panel Cabinet Door Router Bit Set
Application:
Cabinet Door
Manufacturer:
Yonico
MPN:
12338
Weight:
1.74 lbs.
