Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

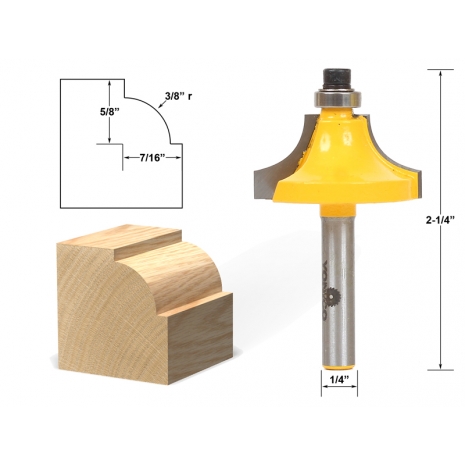

Round over bead bits create clean rounded profile edges with an added bead above and below the roundover profile adding a classic and sleek look to any edging application. The Yonico 13174q creates 3/8" radius round over with bead.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
5/8"
Cutting Depth:
7/16"
Overall Length:
2-1/4"
Largest Diameter:
1-1/4"
Radius:
3/8"
Number of Flutes:
2
Bearing Specs
Bearing Outer Diameter:
3/8"
General Info
Release Date:
02/23/2015
Condition:
New
Item #:
13174q
UPC:
765573829273
Brand:
Yonico
Design:
Round Over Bead
Product Type:
Round Over Bead Edge Forming Router Bit
Manufacturer:
Yonico
MPN:
13174q
Weight:
0.13 lbs.
