Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

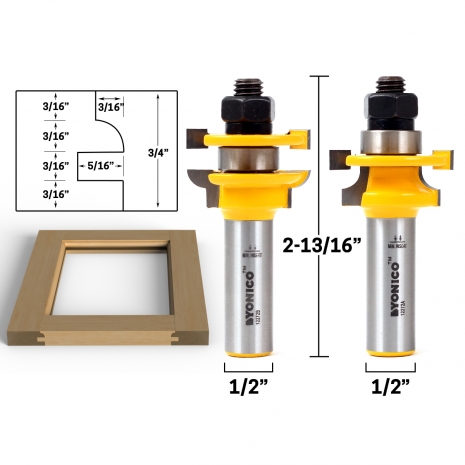

Yonico junior rail and stile router bit sets will cut junior sized stiles and rails for doors on smaller projects. For use with stock between 5/8" and 3/4" thick. The slots cut with these bits are 5.2 mm thick which will fit perfectly with standard 1/4" plywood panels. Fully enclosed ball bearings will allow you to create arched and cathedral style doors from already shaped stock. These junior rail and stile bits set comes in a solid wood storage case for storage convenience. The blades are C3 micro-grain carbide tipped.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
2
Cutting Length:
25/32"
Cutting Depth:
5/16"
Overall Length:
2-13/16"
Largest Diameter:
1-1/4"
Number of Flutes:
2
Minimum Stock Thickness:
5/8"
Maximum Stock Thickness:
3/4"
Bearing Specs
Bearing Outer Diameter:
5/8"
General Info
Release Date:
11/21/2016
UPC:
765573834932
Design:
Round Over
Product Type:
2 Bit Junior Rail and Stile Router Bit Set
Application:
Cabinet Door
Manufacturer:
Yonico
