Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

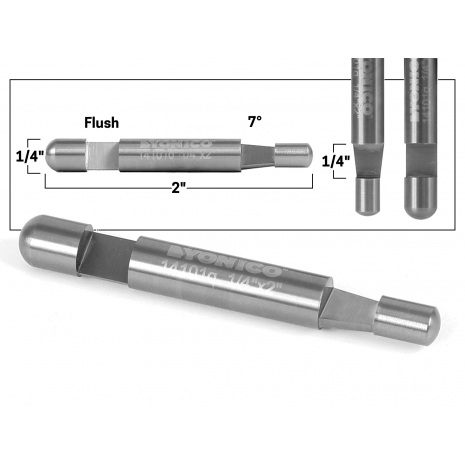

Piloted router bits offer a few benefits over those with bearing. The low profile pilot allows you to get in tight spaces without bearing maintenance and the risk of losing your bearing in the process. In addition, these router bits can be manufactured double ended adding value to its already economical price point.
Bit Specs
Material:
Solid Carbide
Number of Bits:
1
Cutting Diameter:
1/4"
Cutting Length:
1/4"
Overall Length:
2"
Largest Diameter:
1/4"
Degrees:
0° & 7°
Number of Flutes:
2
Maximum Stock Thickness:
1/4"
General Info
Release Date:
11/01/2012
Condition:
New
Item #:
14101q
UPC:
765573825985
Brand:
Yonico
Design:
Straight
Product Type:
Pilot Flush Trim Solid Carbide Router Bit
Manufacturer:
Yonico
MPN:
14101q
Weight:
0.09 lbs.
