Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

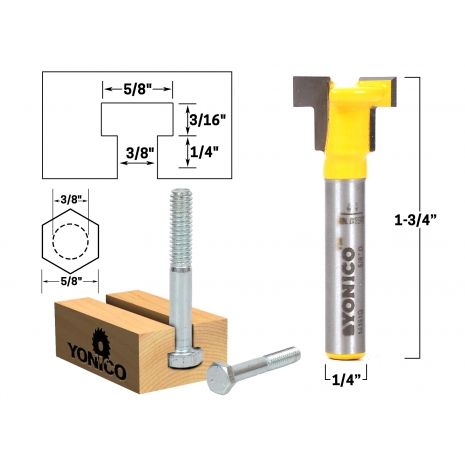

T-slot router bits are great for creating T-channels for jig and clamp applications and keyholes for hanging projects. It is recommended that a straight groove, matching width to the upper part of the "T", be cut into the workpiece prior to routing the T-slot to reduce the stress on the bit. T-slot cuts produce a lot of wood chips with little room for them to escape and can cause the bit to get bogged down. Go easy on the feed and back off every couple of inches before resuming with the cut.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Diameter:
5/8"
Cutting Length:
7/16"
Overall Length:
1-3/4"
Number of Flutes:
2
General Info
Release Date:
12/25/2012
Condition:
New
Item #:
14191q
UPC:
765573829754
Brand:
Yonico
Design:
T Slot
Product Type:
T Slot Router Bit
Manufacturer:
Yonico
MPN:
14191q
Weight:
0.09 lbs.
