Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

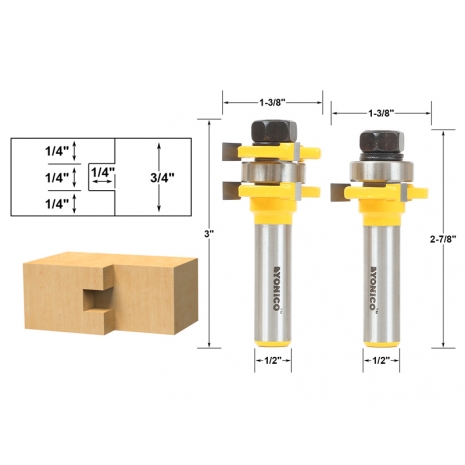

Cut versatile ¼†x ¼†tongue and groove joints with the Yonico 15228 Tongue and Groove Router bit set. This set is great for all types joinery applications. This set includes separate tongue and groove bits eliminating the need to reassemble the bits for the tongue and groove cuts. Use with stock up to 3/4" thick. High quality C3 carbide tipped, 3 wing cutters. Fully enclosed 7/8†outer diameter guide bearings. 1/2" shanks.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
2
Cutting Depth:
1/4"
Largest Diameter:
1-3/8"
Number of Flutes:
3
Minimum Stock Thickness:
1/2"
Maximum Stock Thickness:
3/4"
Bearing Specs
Bearing Inner Diameter:
5/16"
Bearing Outer Diameter:
7/8"
Bearing Height:
9/32"
General Info
Release Date:
12/05/2014
Condition:
New
Item #:
15228
UPC:
765573828795
Brand:
Yonico
Design:
Tongue & Groove
Product Type:
Tongue & Groove Router Bit
Manufacturer:
Yonico
MPN:
15228
Weight:
1.12 lbs.
