Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

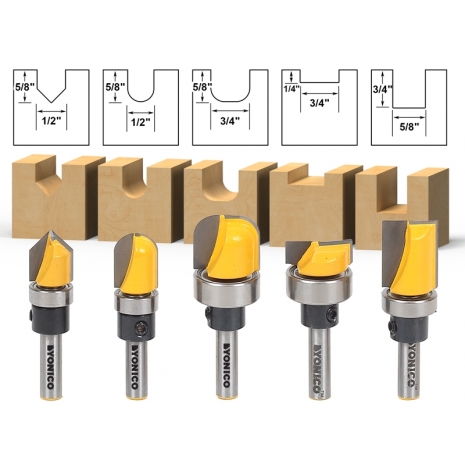

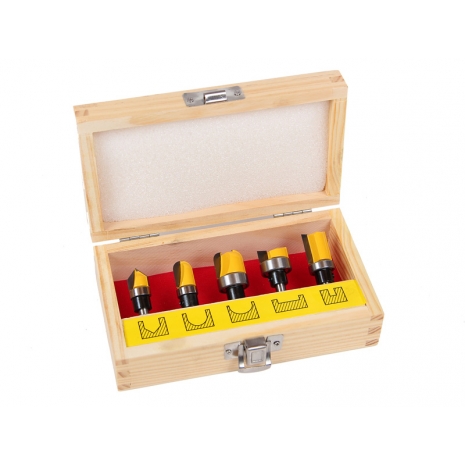

The Yonico 14525q 5 bit set includes an assortment of pattern/template router bits for sign making, lettering and various other uses.
Set includes:
- 90° V-Groove Template Bit - 1/2" Width X 5/8" Height,
- Round-nose Template Bit - 1/2" Width X 5/8" Height,
- Bowl Template Bit - 3/4" Width X 5/8" Height,
- Hinge Mortise Template Bit - 3/4" Width X 1/4" Height,
- Straight Template Bit - 5/8" Width X 3/4" Height,
All bits in this set feature center meeting blades for a perfectly smooth finish. Carbide tipped and 1/4" shanks.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
5
Cutting Diameter:
Multi
Cutting Length:
Multi
Number of Flutes:
2
General Info
Release Date:
11/13/2012
Condition:
New
Item #:
14525q
UPC:
765573826593
Brand:
Yonico
Product Type:
5 Bit Template Router Bit Set
Manufacturer:
Yonico
MPN:
14525q
Weight:
0.85 lbs.
