Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

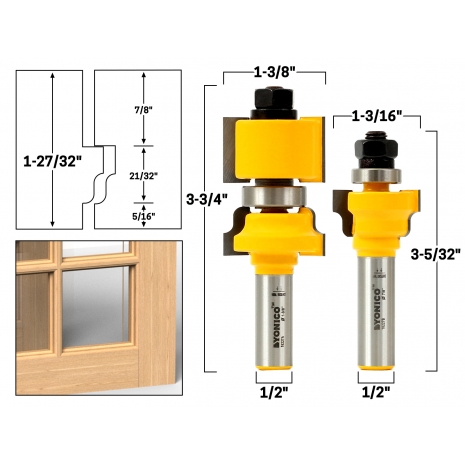

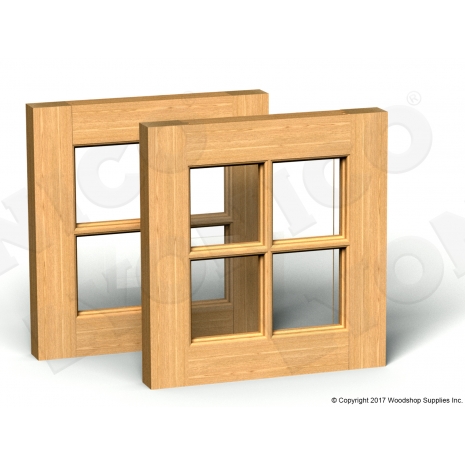

Build windows and doors with these window sash router bits. These differ from regular rail & stile bits in that these have a shallow profile and full rabbeted back for window pane insertion and replacement. These bits can be used on stock in a wide range of thicknesses.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
2
Cutting Length:
1-27/32"
Cutting Depth:
1/4"
Overall Length:
3-3/4"
Largest Diameter:
1-3/8"
Number of Flutes:
2
Minimum Stock Thickness:
1-1/4"
Maximum Stock Thickness:
1-13/16"
Bearing Specs
Bearing Inner Diameter:
5/16"
Bearing Outer Diameter:
7/8"
Bearing Height:
9/32"
General Info
Release Date:
11/01/2012
Condition:
New
Item #:
18227
UPC:
765573827552
Brand:
Yonico
Design:
Ogee
Product Type:
Window Sash Router Bit
Manufacturer:
Yonico
MPN:
18227
Weight:
1.44 lbs.
