Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

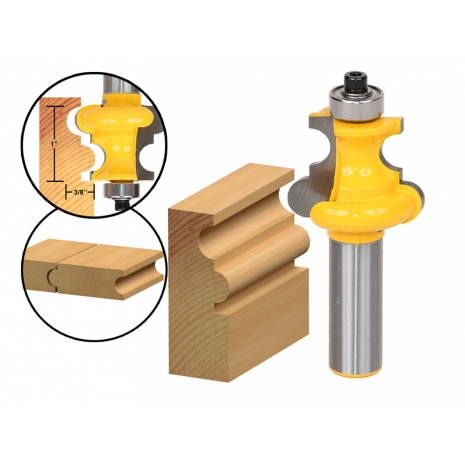

The flute & bead molding router bit will make beautiful edge molding profiles. It can also cut both the cove and mating hinge bead used to make long seamless joints. This flute and bead molding router bit consists of two flute carbide cutters & 1/2" shank.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
1"
Cutting Depth:
3/8"
Overall Length:
2-7/8"
Largest Diameter:
1-1/4"
Radius:
3/16"
Number of Flutes:
2
Bearing Specs
Bearing Inner Diameter:
3/16"
Bearing Outer Diameter:
1/2"
Bearing Height:
3/16"
General Info
Release Date:
11/01/2012
Condition:
New
Item #:
16145
UPC:
765573827170
Brand:
Yonico
Product Type:
Flute and Bead Router Bit
Manufacturer:
Yonico
MPN:
16145
Weight:
0.24 lbs.
